Mould opener Z4-19

STRACK NORMALIEN®
Mould opener Z4-19 ...Read more

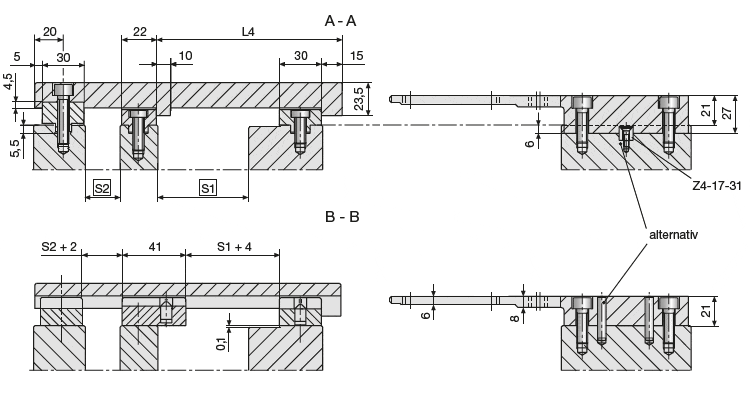

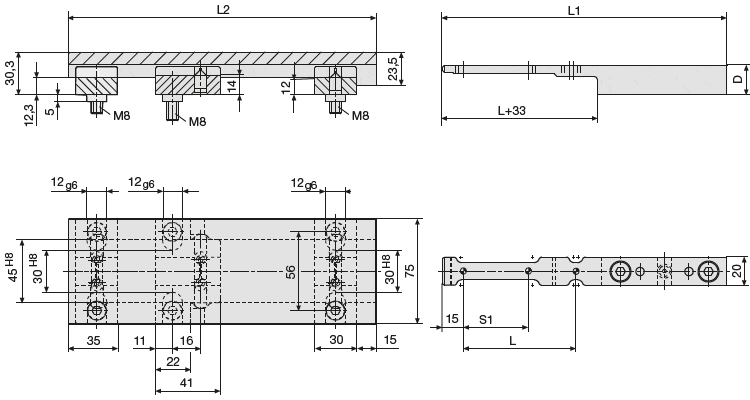

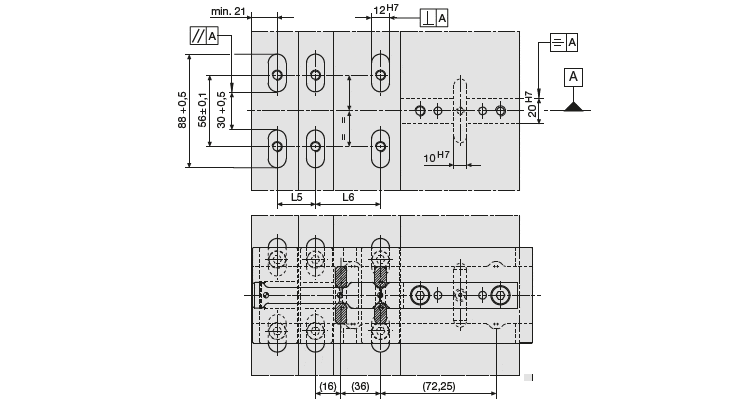

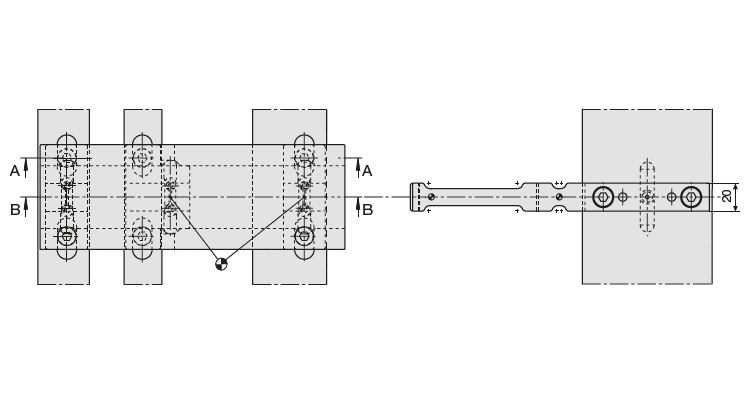

Z4 - 19 - S1 - S2 - L - L1 - L2 - L4 - L5 - L6 - D

S1 S2 L L1 L2 L4 L5 L6 D
60 12 96 207 213 131 39 52 21
60 12 96 207 213 131 39 52 27

CAD

  • Moulds works
    In addition to the mould dimensions, the expected stripping forces, the weight of the stripping plate and the opening and closing speeds are decisive for the selection of mould openers. Download documentation See the range
  • Hooks
    Mould opening devices. Download documentation See the product
