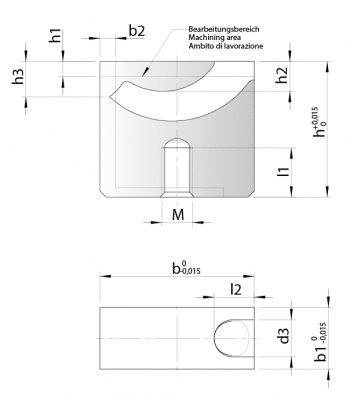

Side gating tunnel inserts for complex forms

I-MOLD
Ideal for injecting parts in depth | Curved tunnel permits gating deep inside the part ...Read more

• Integrated dead-end recess reduces loss of pressure and shear stress
• Highly wear-resistant hot working steel M2 (1.3343) – 54+2 HRC
• Hardness : 54±2 HRc
• Material : 1.3343
• Interchangeable : E 1695

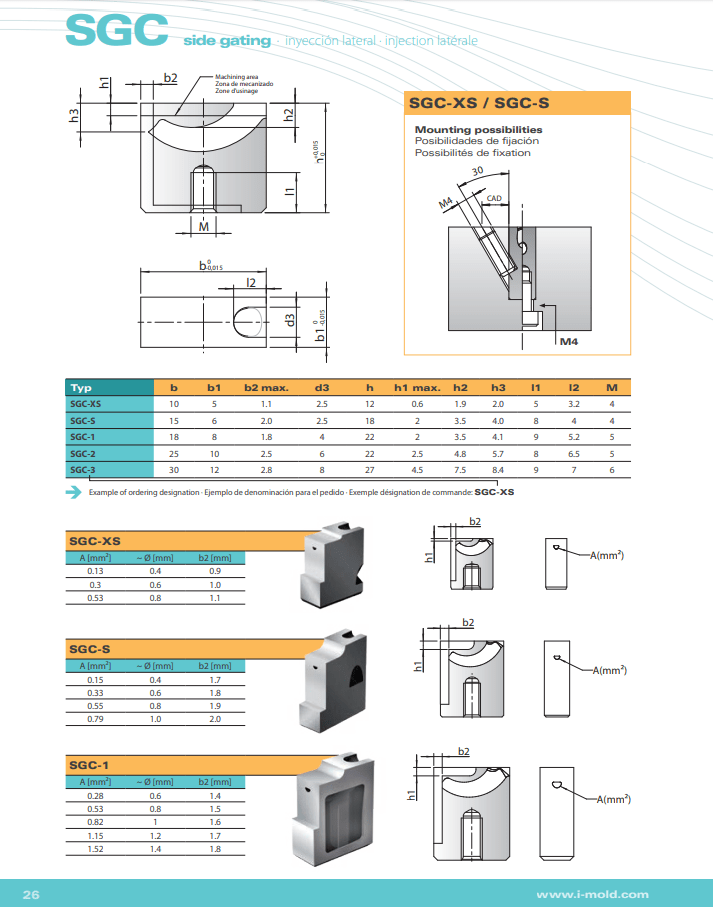

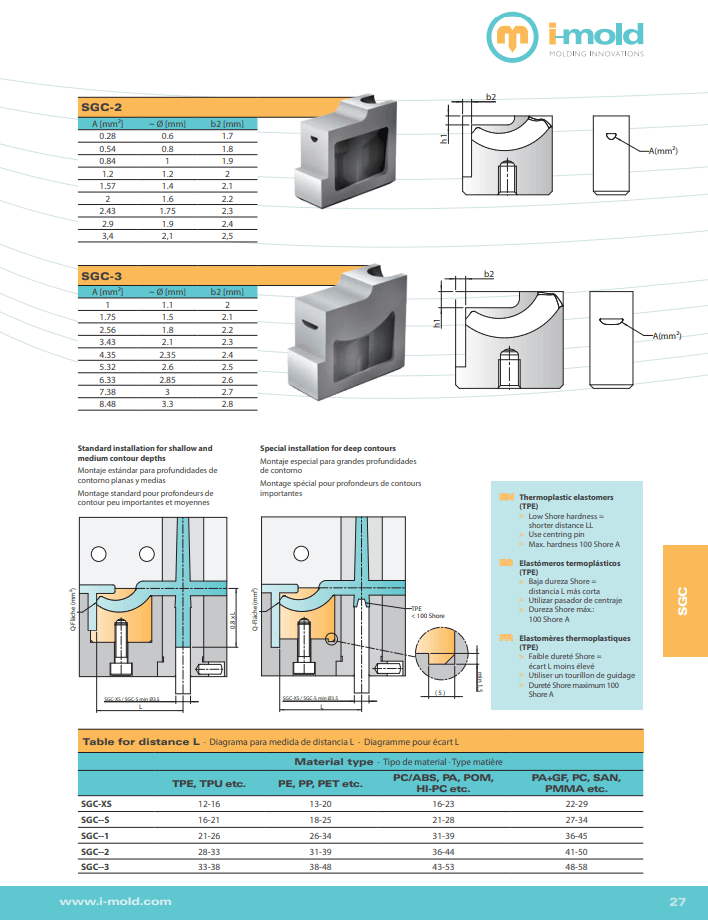

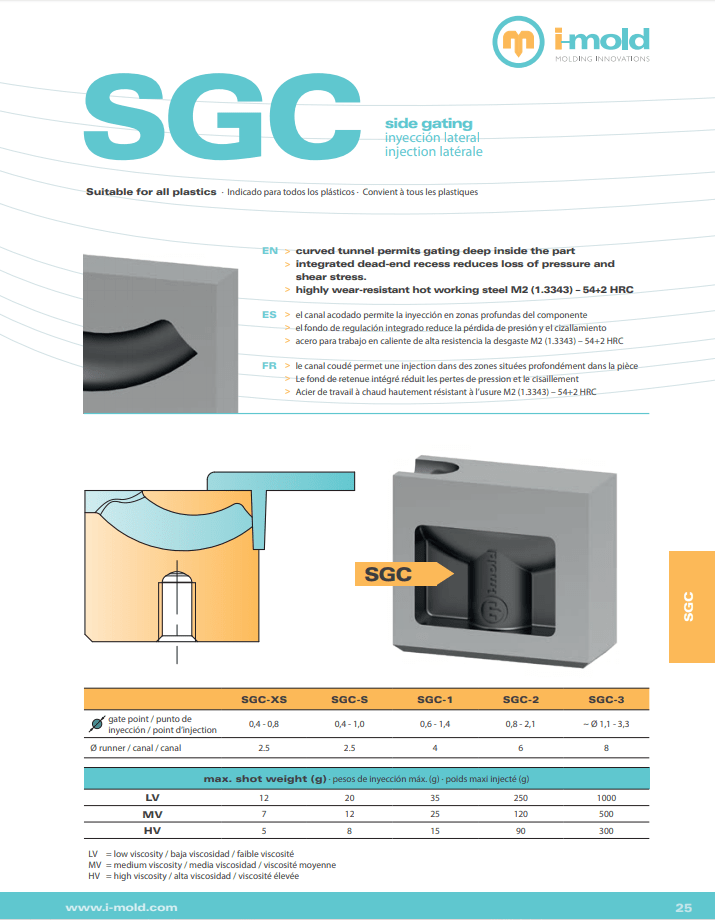

  • I-Mold Catalogue – Injection moulding squash
    Underwater injection fittings for mould making and injection moulding. Download documentation See the range
